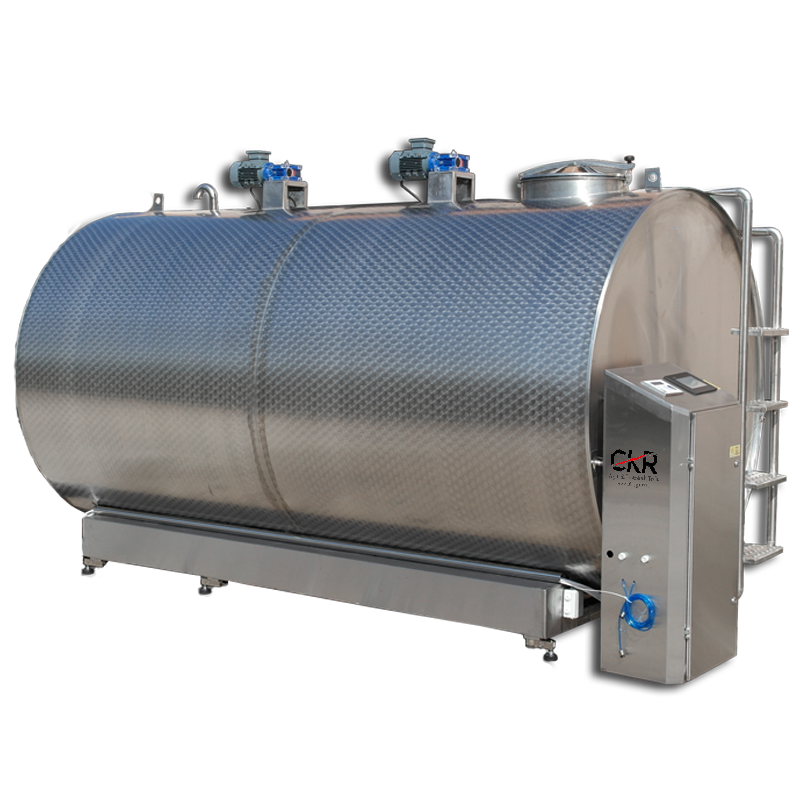

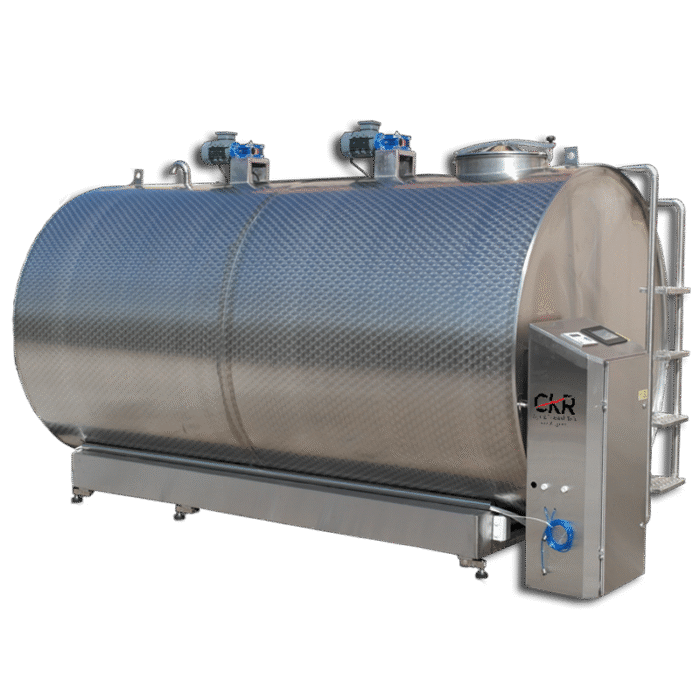

Cooling Tanks (Horizontal)

Horizontal

Capacity
• 2000 Lt, 2500 Lt, 3000 Lt, 4000 Lt, 5000 Lt, 6000 Lt, 8000 Lt, 10000 Lt,12000 Lt, 16000 Lt
Construction
• AISI 304 quality stainless steel
• 1st wall base is 2 mm and it also has 0,8 mm Ep type laser welded cooler evaporator surface that is coupled to wall.
• Isolated wall is 1,5 mm for 2000 – 4000 Lt capacity tanks and 2 mm for
• 5000 – 16000 Lt capacity tanks.
• Cooler unit and tank body are mounted on single chassis.
• There are 1 0,34 HP 33 d/d redactor and stainless steel mixer blade on redactor.
There are 2 mixer at 6000 Lt, 8000 Lt, 10000 Lt,12000 Lt and 1600 Lt
milk cooling tanks.
• Isolation range has 60 mm thickness, isolated with water based, non-HCFC high density polyurethane foam material.
• Product output has DN50 male sleeve, butterfly valve.
• There is also AISI 304 quality stainless steel Ø 500 mm manhole cover.
• There is Ø 100 mm covered product entry on the manhole cover.
• There is Ø 90 ventilation outlet.
• There is manual measuring scale with ‰ 3-4 sensitivity rate.
• It has anti-slippery AISI 304 quality ladder.
• Design that allow zero liquid to remain in the rank during discharge.
• Welded sections are welded with 1st class Argon TIG welding and has 1st class smooth polishing.
• There are adjustable bolted stands under the tank
