Cow
Sheep & Goat

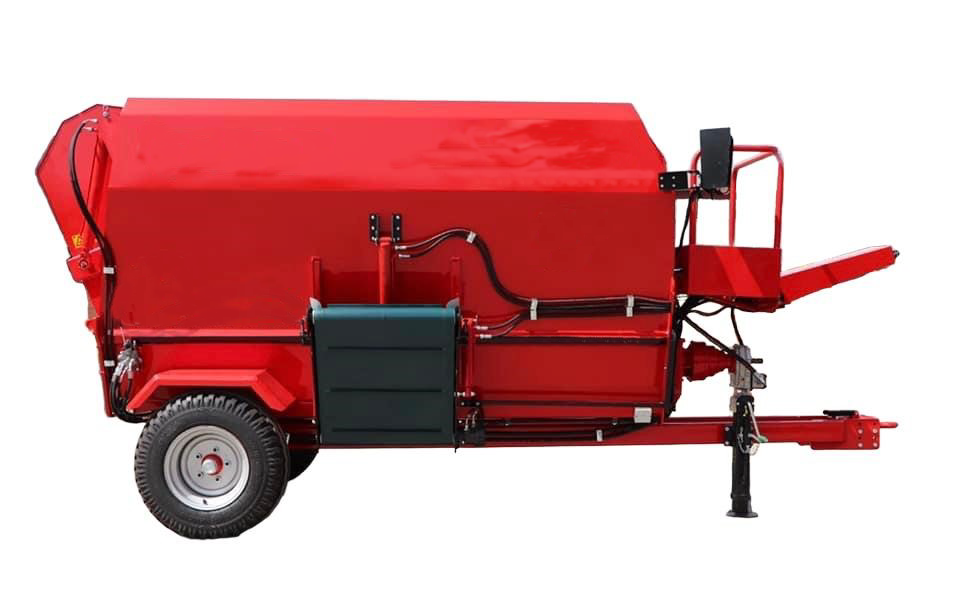

HORIZONTAL FEED MIXING
Model |
R3 |
R4 |
R6 |
R8 |
R10 |
R12 |
R14 |
R16 |
R18 |
R20 |
| Capacity | 3 m³ | 4 m³ | 6 m³ | 8 m³ | 10 m³ | 12 m³ | 14 m³ | 16 m³ | 18 m³ | 20 m³ |
| Width | 1520 mm | 1700 mm | 1950 mm | 2015 mm | 2050 mm | 2100 mm | 2170 mm | 2300 mm | 2360 mm | 2360 mm |
| Length | 3880 mm | 4265 mm | 4915 mm | 4920 mm | 5275 mm | 5680 mm | 5935 mm | 6365mm | 7200 mm | 7375 mm |
| Height | 1770 mm | 1850 mm | 2250 mm | 2500 mm | 2500 mm | 2550 mm | 2765 mm | 2750 mm | 2850 mm | 3000 mm |
| Transfer | Reductor | Reductor | Reductor | Reductor | Reductor | Reductor | Reductor | Reductor | Reductor | Reductor |
| Machine Weight | 13 5 0 kg | 1850 kg | 2600 kg | 3650 kg | 3850 kg | 4250 kg | 4850 kg | 5950 kg | 6450 kg | 6950 kg |
| Tractor Power Required | 2.5 hp | 30 hp | 30-40 hp | 40-50 hp | 50 – 70 hp | 70 – 90 hp | 90 – 100 hp | 10 0 – 110 hp | 120 – 130 hp | 130 – 150 hp |
Reviews (0)
Related products
HORIZONTAL ELECTRIC FEED MIXING AND DISTRIBUTING MACHINES
| Model |
SR 2 0 |
SR 2 5 |
SR 3 0 |
| Capacity | 20 m³ | 2.5 m³ | 30 m³ |
| Width | 2320 mm | 2430 mm | 2415 mm |
| Length | 7100 mm | 5835 mm | 7550 mm |
| Height | 2940 mm | 357 0mm | 2900 mm |
| Electric Motor | 5.5 kW | 5.5 kW | 7.5 kW |
| Reductor | Electric Motor & Reducer | Electric Motor & Reducer | Electric Motor & Reducer |
| Electrical Panel | Inverter or Start - S top | Inverter or Start - S top | Inverter or Start - S top |
| Machine Weight | 6950 kg | 7700 kg | 8350 kg |
VERTICAL ELECTRIC FEED MIXING AND DISTRIBUTING MACHINES
| Model | DW 2 0 | DW 3 0 | DW 3 0 | DW 5 0 |
| Capacity | 20 m³ | 30 m³ | 30 m³ | 50 m³ |
| Mixing System | 2 Helezon | 2 Helezon | 3 Helezon | 3 Helezon |
| Width | 2430 mm | 2430 mm | 2415 mm | 2415 mm |
| Length | 5550 mm | 5835 mm | 7550 mm | 7750 mm |
| Height | 307 0mm | 3570mm | 2900 mm | 3775 mm |
| Electric Motor | 2 x 37,5 kW | 2 x 45 kW | 3 x 37,5kw | 3 x 45 kW |
| Reductor | Electric Motor & Reducer | Electric Motor & Reducer | Electric Motor & Reducer | Electric Motor & Reducer |
| Electrical Panel | Inverter or Start - S top | Inverter or Start - S top | Inverter or Start - S top | Inverter or Start - S top |
| Machine Weight | 6000 kg | 7000 kg | 9000 kg | 10500 kg |
